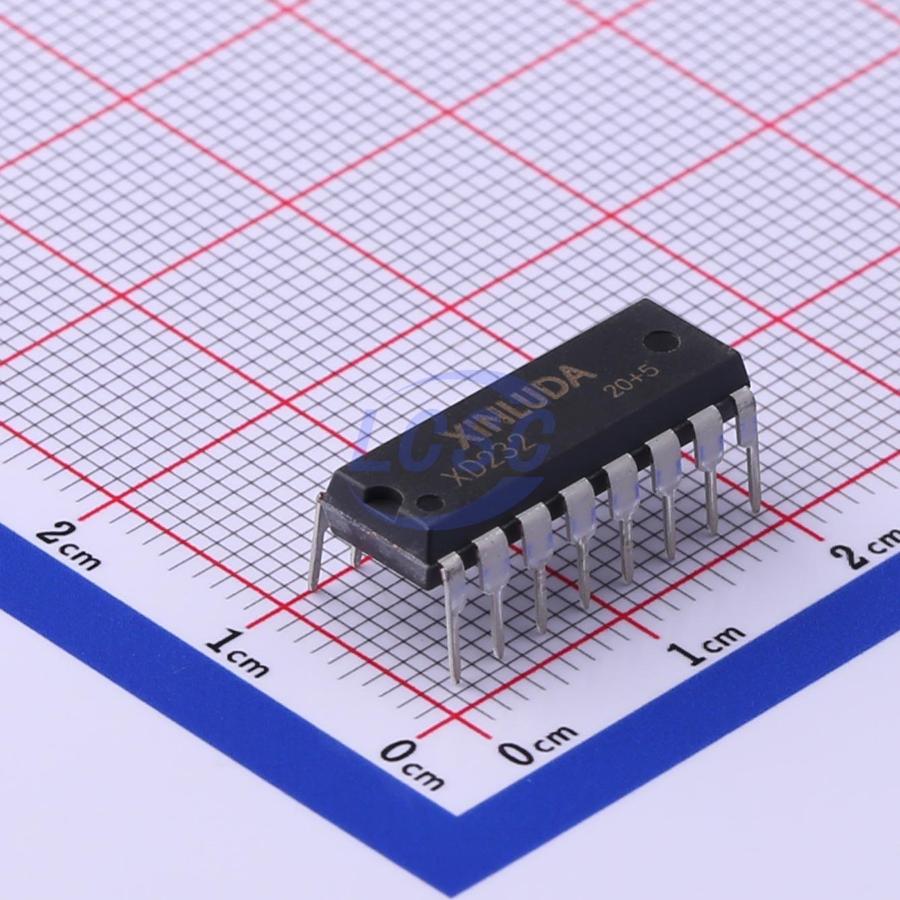

XD232 – RS-232 Transceiver – Xinluda

The Xinluda XD232 is a +5V-powered, multichannel RS-232 driver/receiver IC with two drivers and two receivers in a DIP-16 package, functionally compatible with the industry-standard MAX232.

The Xinluda XD232 is a +5V-powered, multichannel RS-232 line driver/receiver designed for EIA/TIA-232E and V.28/V.24 serial communications interfaces, particularly in applications where a bipolar ±12V supply is not available. Integrated charge-pump circuitry generates the required RS-232 line voltages from a single +5V supply, making the XD232 a functional equivalent to the industry-standard MAX232 family. The device is supplied in a through-hole DIP-16 package.

Key Features

• +5V single-supply operation with on-chip dual charge-pump voltage converter
• Two line drivers and two line receivers
• Eliminates the need for a bipolar ±12V supply
• Uses external charge-pump capacitors (per datasheet) to generate RS-232 line voltages
• Low quiescent supply current (8 mA typical, no load)
• Operating temperature range of -40°C to +85°C
• Functionally compatible with the MAX232 / industry-standard RS-232 transceiver architecture
• DIP-16 through-hole package

Applications

• RS-232 serial interface translation (TTL/CMOS to RS-232)
• Industrial automation and PLC communication links
• Portable and diagnostic test equipment
• Point-of-sale and data terminal equipment
• Embedded and legacy single-board computer serial ports

Why Source XD232 from Pacific Component Xchange

The Xinluda XD232 is a hard-to-find part with little or no authorized-distributor stock, and the through-hole DIP-16 version is especially scarce as the industry shifts toward surface-mount packaging. Pacific Component Xchange specializes in sourcing obsolete, allocated, and hard-to-find interface and power-management ICs like the XD232 through a vetted global supply network. Every order is backed by our authenticity and quality-assurance program, with inspection and counterfeit-mitigation processes to protect your build. We ship worldwide and support both prototype and production volumes. Submit an RFQ today and our sourcing team will respond quickly with current availability, lead time, and pricing for the XD232.
