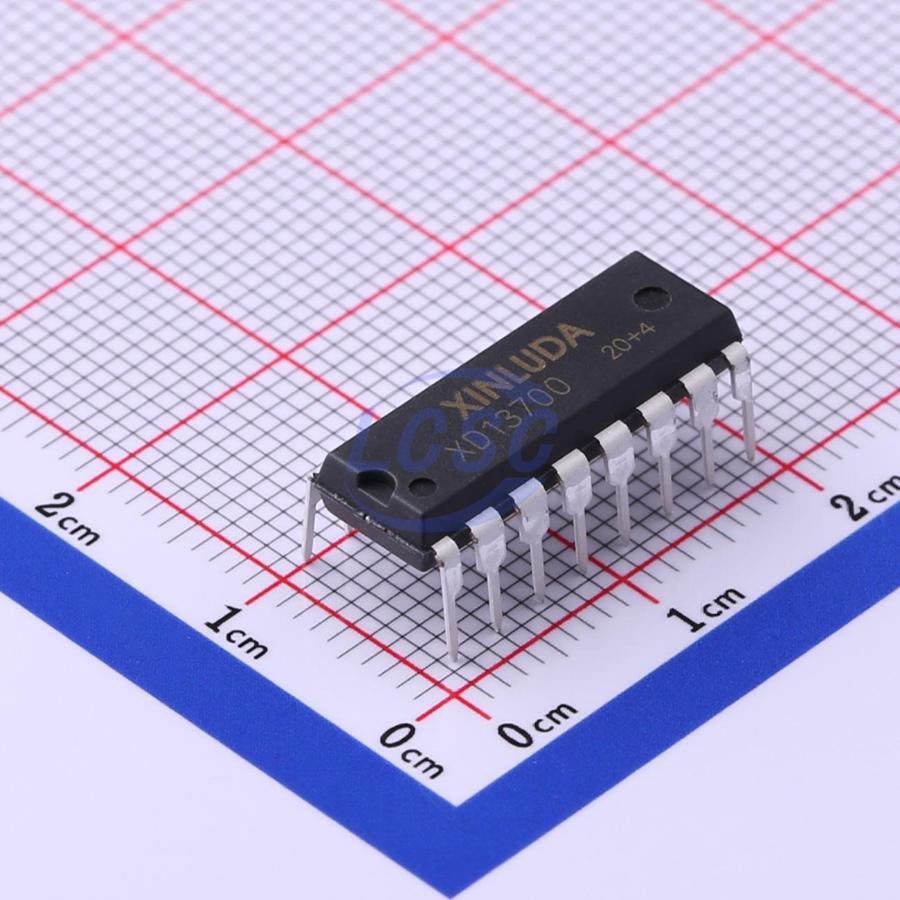

The Xinluda XD13700 is a dual operational transconductance amplifier (OTA) with built-in linearizing diodes and output buffers in a DIP-16 package, functionally equivalent to the classic LM13700.

The Xinluda XD13700 is a dual operational transconductance amplifier (OTA) featuring on-chip linearizing diodes and high-impedance output buffers, supplied in a through-hole DIP-16 package. The device integrates two independent transconductance amplifiers that share common supply rails, with transconductance (gm) that is adjustable over six decades by an external amplifier bias current. This makes the XD13700 a versatile building block for voltage-controlled amplifiers, filters, oscillators, and other analog signal-processing functions. It is a form-, fit-, and function-compatible alternative to the widely used LM13700-class OTA.

Key Features

• Dual operational transconductance amplifiers in a single package
• Transconductance (gm) adjustable over 6 decades
• Excellent gm linearity
• Excellent matching between the two amplifiers
• On-chip linearizing diodes for reduced output distortion
• High-impedance output buffers
• High output signal-to-noise ratio
• Single-supply operation: 9.5 V to 32 V
• Dual-supply operation: +4.75 V to +16 V / -16 V to -4.75 V
• Operating temperature range: 0 C to +70 C
• DIP-16 through-hole package
• RoHS compliant

Applications

• Voltage-controlled amplifiers (VCA)
• Voltage-controlled filters and oscillators
• Analog synthesizers and music/audio effects
• Sample-and-hold and multiplier circuits
• Automatic gain control (AGC) and modulation circuits
• Programmable analog signal processing

Why Source XD13700 from Pacific Component Xchange

The XD13700 is a specialty analog part with little to no authorized-distributor stock, which can make it difficult to procure for production runs, repairs, or legacy designs. Pacific Component Xchange is an independent distributor focused on hard-to-find and obsolete power-management ICs and analog components. We help engineers and buyers locate, authenticate, and ship scarce parts like the XD13700 worldwide.

Because this is a request-for-quote item, pricing and lead time are confirmed at the time of inquiry. We emphasize authenticity and supply-chain transparency, and offer global shipping to keep your designs in production. Submit an RFQ today for current availability, quantity pricing, and delivery on the Xinluda XD13700.
