XD13600 – Operational Transconductance Amplifier (OTA) – Xinluda

The Xinluda XD13600 is a dual operational transconductance amplifier (OTA) with linearizing diodes and buffers in a DIP-16 package, an LM13600-equivalent device for current-controlled analog designs.

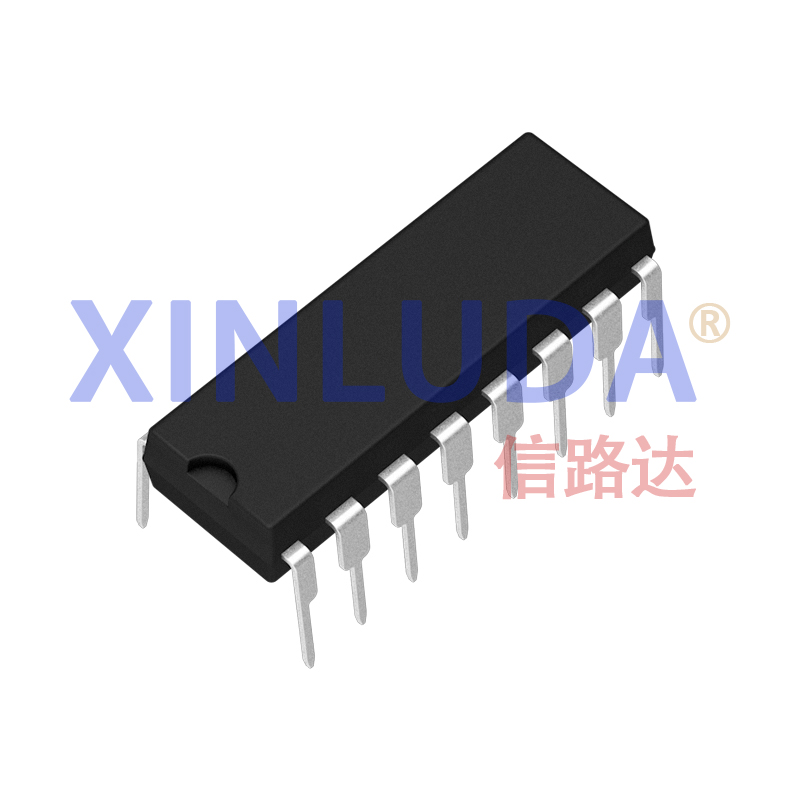

The XD13600 from Xinluda is a dual operational transconductance amplifier (OTA) packaged in a 16-pin DIP. It integrates two independent current-controlled transconductance amplifiers, each fitted with linearizing diodes and a high-impedance output buffer. This architecture makes the XD13600 a functional equivalent of the classic LM13600 family, widely used in voltage-controlled and current-controlled analog signal processing.

Because the amplifier transconductance (gm) is set by an external bias current, the XD13600 is a versatile building block for adjustable-gain stages, voltage-controlled filters, and synthesizer-style audio circuits where smooth, parameter-controllable gain is required.

Key Features

• Two independent current-controlled (operational) transconductance amplifiers in one package
• Linearizing diodes that reduce output distortion and allow higher input signal levels
• High-impedance output buffers matched to the dynamic range of the amplifiers
• Good gm linearity and excellent matching between the two amplifiers
• High output signal-to-noise ratio
• Operating temperature range of 0°C to +70°C
• 16-pin DIP (DIP-16) through-hole package
• RoHS compliant
• Functional equivalent of the LM13600 (SOP-16 sibling: XL13600)

Applications

• Current-controlled and voltage-controlled amplifiers (VCAs)
• Voltage-controlled filters and tunable active filters
• Voltage-controlled oscillators (VCOs) and timing circuits
• Stereo and analog audio signal processing / synthesizers
• Current-controlled impedance networks
• Analog multiplexers and sample-and-hold circuits

Why Source XD13600 from Pacific Component Xchange

The XD13600 is a specialty Xinluda analog part with limited authorized-distributor coverage, which can make it difficult to procure in production quantities. Pacific Component Xchange is an independent distributor focused on hard-to-find and obsolete power-management ICs, amplifiers, and optocouplers. We help engineers and buyers secure scarce components like the XD13600 with authenticity verification, flexible quantities, and worldwide shipping.

This is a Request-for-Quote (RFQ) item. Contact Pacific Component Xchange today for current pricing, stock, and lead time on the XD13600 and let our sourcing team handle the search so your build stays on schedule.
