XC6SLX100-3FGG484C – FPGA – AMD Xilinx

About this part

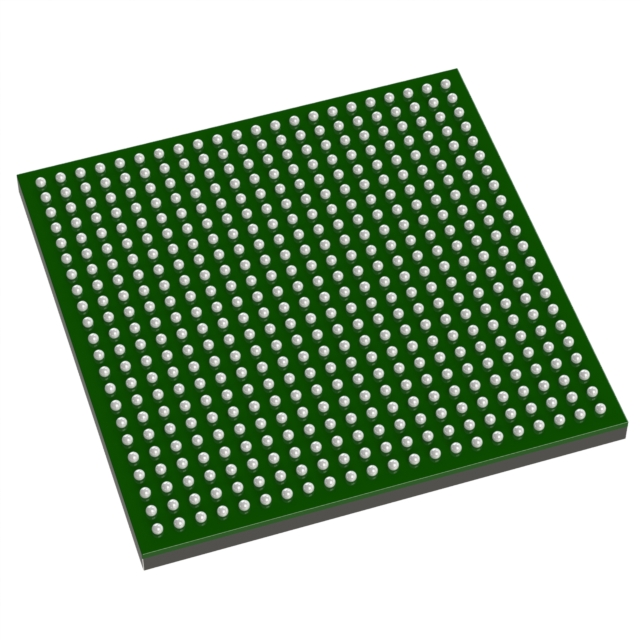

The XC6SLX100-3FGG484C is a high-density member of the AMD Xilinx Spartan-6 LX FPGA family, engineered for cost-sensitive, high-volume designs that still demand substantial logic, signal-processing and memory-interface capability. Fabricated on a mature 45 nm low-power process, this device packs 101,261 logic cells (15,822 slices) into a compact 23x23mm FGG484 ball-grid-array package, making the XC6SLX100-3FGG484C a strong fit for board designs where space, cost and performance must all be balanced.

The “-3” suffix designates the fastest commercial speed grade in the Spartan-6 LX lineup, while the “C” temperature grade covers commercial operation from 0°C to 85°C junction temperature. With 180 DSP48A1 slices and 4,824 Kb of dedicated block RAM, the XC6SLX100-3FGG484C delivers serious arithmetic and on-chip storage resources for video, imaging and DSP workloads.

Key Features

• 101,261 logic cells and 15,822 slices for high-density logic integration
• 180 DSP48A1 slices for efficient multiply-accumulate and filtering operations
• 268 block RAM blocks (18 Kb each), totaling 4,824 Kb / 4,939,776 RAM bits
• Up to 976 Kb of distributed RAM for flexible local storage
• 8 Clock Management Tiles (CMTs) for clock synthesis, phase shifting and deskew
• Up to 326 user I/O for wide, high-fan-out interfaces
• Integrated memory controller blocks supporting DDR, DDR2, DDR3 and LPDDR
• 1.2V nominal core voltage (VCCINT range 1.14V–1.26V) for low-power operation
• -3 speed grade (fastest commercial) on a 45 nm process
• Commercial temperature range: 0°C to 85°C junction temperature
• 23x23mm FGG484 FBGA package for space-constrained boards

Applications

• High-volume logic designs
• Cost-sensitive embedded systems
• Consumer-oriented DSP designs
• Industrial automation and control
• Automotive electronics
• Video and image processing
• Communications interface bridging

Why Source XC6SLX100-3FGG484C from Pacific Component Xchange

Pacific Component Xchange is your sourcing partner for the AMD Xilinx XC6SLX100-3FGG484C, whether you need production volumes today or are tracking down hard-to-find and end-of-life inventory for legacy programs. Because pricing and availability move quickly in the FPGA market, the XC6SLX100-3FGG484C is offered on a Request-for-Quote basis—submit an RFQ and our team will respond with current pricing, lead time and stock. Every device is sourced with a focus on quality and authenticity to protect your build, and we ship globally to support engineering and procurement teams wherever your project is based. Request a quote for the XC6SLX100-3FGG484C to lock in supply for your next run.
