XC6SLX100-2FGG484C – FPGA – AMD Xilinx

About this part

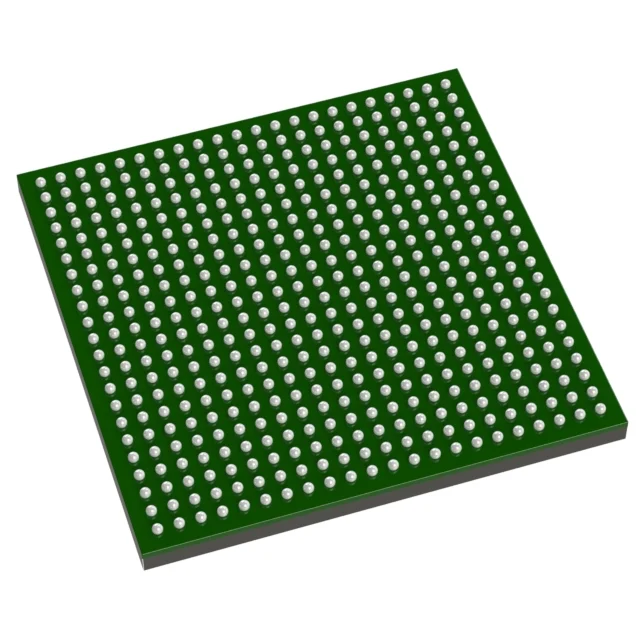

The XC6SLX100-2FGG484C is a high-density, cost-optimized FPGA from the AMD (formerly Xilinx) Spartan-6 LX family. Built on a 45 nm process, this device delivers 101,261 logic cells, 15,822 slices and 180 DSP48A1 slices, making it well suited for designs that need substantial programmable logic and signal-processing throughput without the cost of a high-end FPGA. The XC6SLX100-2FGG484C ships in a 484-ball fine-pitch BGA (FGG484, 23 x 23 mm, 1.0 mm pitch) with up to 326 user I/O, a -2 speed grade and a commercial temperature rating (Tj 0C to 85C).

Key Features

• 101,261 logic cells and 15,822 slices for high-density programmable logic
• 180 DSP48A1 slices for efficient multiply-accumulate and filtering operations
• 4,824 Kb of Block RAM across 268 x 18 Kb blocks (4,939,776 total RAM bits)
• Up to 326 user I/O in the FGG484 package for wide interface flexibility
• -2 speed grade for higher performance designs
• Commercial temperature grade, junction temperature 0C to 85C
• 1.2 V nominal core voltage (VCCINT 1.14 V to 1.26 V) for low power operation
• 45 nm process technology balancing density, performance and cost
• FBGA-484 package, 23 x 23 mm, 1.0 mm ball pitch

Applications

• High-volume, cost-sensitive logic designs
• Consumer-oriented DSP applications
• Embedded systems
• Industrial networking and control
• Video and image processing
• Wired and wireless communications interfaces (PCIe, Ethernet, SATA)

Why Source XC6SLX100-2FGG484C from Pacific Component Xchange

Pacific Component Xchange is your sourcing partner for the XC6SLX100-2FGG484C and other Spartan-6 LX FPGAs, including active, hard-to-find and obsolete devices. Because this is a request-for-quote item, simply submit an RFQ and our team will respond with current pricing, lead time and availability against our on-hand inventory. Every XC6SLX100-2FGG484C we supply is backed by our quality and authenticity processes to protect you from counterfeit and substandard parts, and we ship worldwide to keep your production and repair programs on schedule. Contact Pacific Component Xchange today for a quote on the XC6SLX100-2FGG484C.
