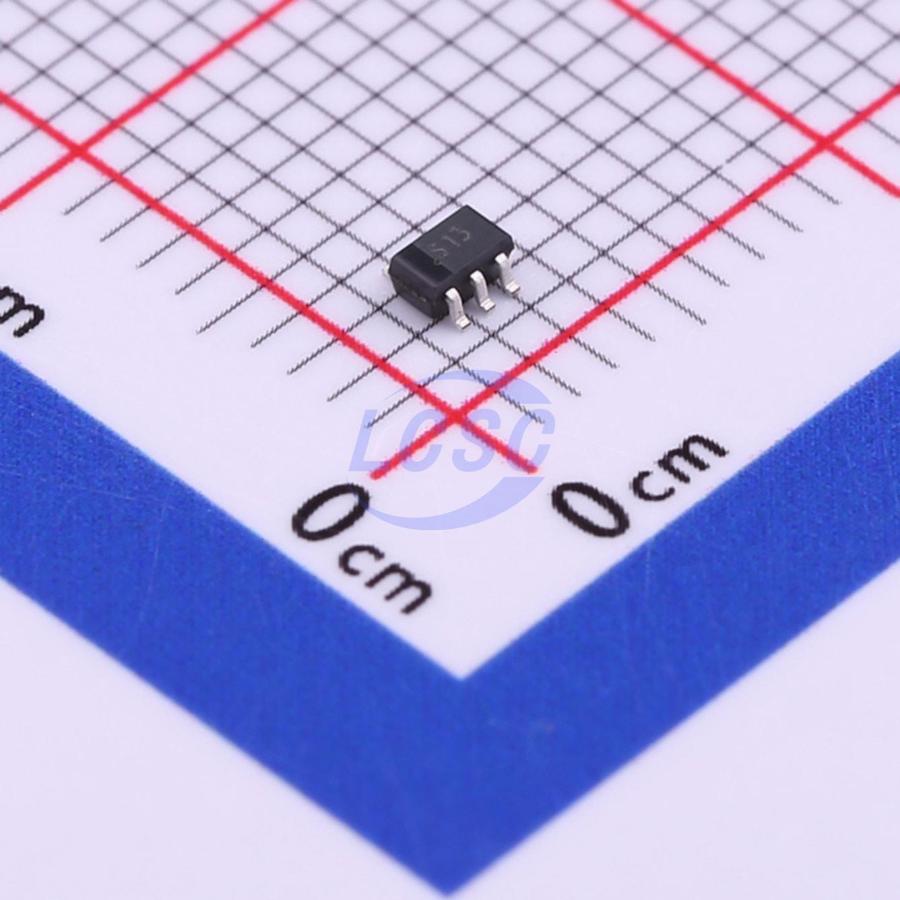

XA2179-S13 – RF Switch (GaAs MMIC SPDT) – Xinluda

The XA2179-S13 from Xinluda is a GaAs MMIC single-pole double-throw (SPDT) RF switch covering 0.05-3.0 GHz, supplied in a compact SOT-363 6-pin package with low insertion loss and high isolation.

The XA2179-S13 is a GaAs MMIC L/S-band single-pole double-throw (SPDT) RF switch manufactured by Xinluda Information Technology Co., Ltd. Designed for cellular handsets, wireless LAN, Bluetooth, and other L/S-band communication systems, the device delivers low insertion loss and high port-to-port isolation across a wide 0.05 GHz to 3.0 GHz operating band. Its ultra-small SOT-363 footprint makes it well suited for space-constrained RF front-end designs.

Key Features

• GaAs MMIC single-pole double-throw (SPDT) RF switch topology
• Operating frequency range: 0.05 GHz to 3.0 GHz (L/S band)
• Low typical insertion loss: 0.25 dB (0.05-1.0 GHz), rising to 0.40 dB (2.5-3.0 GHz)
• High typical isolation: 27 dB (0.05-2.0 GHz), 24 dB (2.0-3.0 GHz)
• Power handling: +32 dBm (P1dB) typical
• Dual control-voltage operation: high 2.5 V to 5.3 V (3.0 V typ.), low -0.2 V to +0.2 V (0 V typ.)
• Operating temperature range: -40 C to +85 C
• Compact SOT-363 6-pin package (2.0 x 1.25 x 0.9 mm), RoHS compliant

Applications

• Cellular and mobile phone RF front ends
• L/S digital cellular systems
• Bluetooth modules and short-range wireless
• Wireless LAN (W-LAN) transceivers
• General-purpose L/S-band transmit/receive switching

Why Source XA2179-S13 from Pacific Component Xchange

The XA2179-S13 is a specialty RF component with little to no authorized-distributor availability, making it a hard-to-find part for production and repair needs. Pacific Component Xchange specializes in sourcing obsolete, allocated, and hard-to-find RF and analog components like the XA2179-S13. Our team focuses on authenticity and supply-chain integrity, with traceable sourcing and inspection to protect your builds. We offer global shipping and responsive quotes for both prototype and volume requirements.

Need the XA2179-S13? Submit a Request for Quote (RFQ) to Pacific Component Xchange and our sourcing specialists will respond with availability, lead time, and pricing for your target quantity.
