The XA2163 from Xinluda is a high-performance single-pole double-throw (SPDT) RF switch built on a GaAs microwave monolithic integrated circuit (MMIC) process. Designed for dual-band 2.4GHz and 6GHz wireless LAN applications, it delivers low insertion loss and high isolation in a space-saving surface-mount package, making it well suited to dense RF front-end layouts.
The XA2163 is a specialty Xinluda RF component with limited authorized-distributor availability, which can make it difficult to source through conventional channels. Pacific Component Xchange specializes in hard-to-find and obsolete power-management ICs, RF components, and optocouplers, giving engineers and buyers a reliable path to parts that are otherwise scarce. We focus on authenticity and traceability, support global shipping, and can fulfill both prototype and production quantities. Submit an RFQ for the XA2163 today and our sourcing team will respond with current availability and pricing.
No. Despite naming that may resemble power-management parts, the Xinluda XA2163 is an SPDT RF switch built on a GaAs MMIC process, used for RF signal routing such as transmit/receive antenna switching.

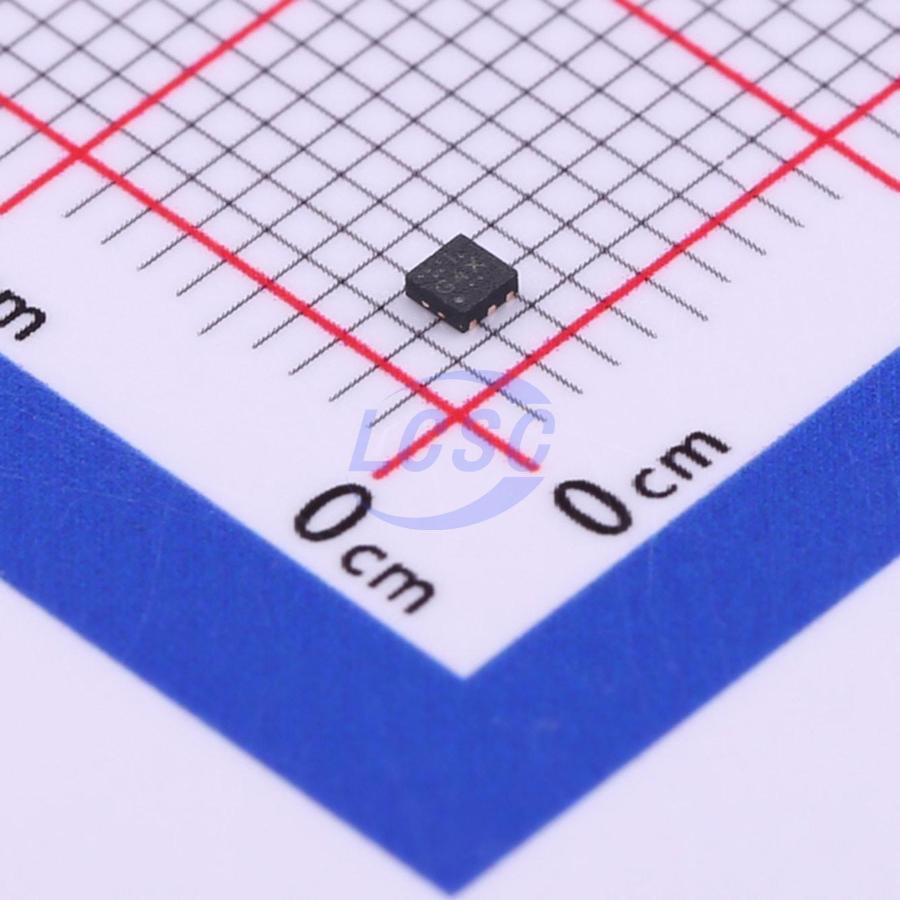

The XA2163 is supplied in a 6-pin TSON-6-EP package measuring 1.5x1.5mm, designed for high-density surface-mount assembly.
The XA2163 provides 43dB isolation, 0.9dB insertion loss, and a P1dB of 31dBm, operating from a 2.8V to 5V control supply over -40 C to +85 C across a 500MHz to 8GHz frequency range.
It is optimized for 2.4GHz and 6GHz dual-band wireless LAN front ends and general RF switching in compact wireless and IoT modules.
The XA2163 is a specialty Xinluda part with limited authorized-distributor availability. Pacific Component Xchange can source it on a request-for-quote basis with global shipping.
The XA2163 is offered as a request-for-quote (RFQ) product. Submit an RFQ to Pacific Component Xchange and our team will reply with current availability, lead time, and pricing.
