The Toshiba TLP628(GB,F) is a single-channel transistor-output optocoupler in a 4-pin DIP package, featuring a 350 V (min.) collector-emitter breakdown voltage and 5000 Vrms isolation. Available for RFQ from Pacific Component Xchange.

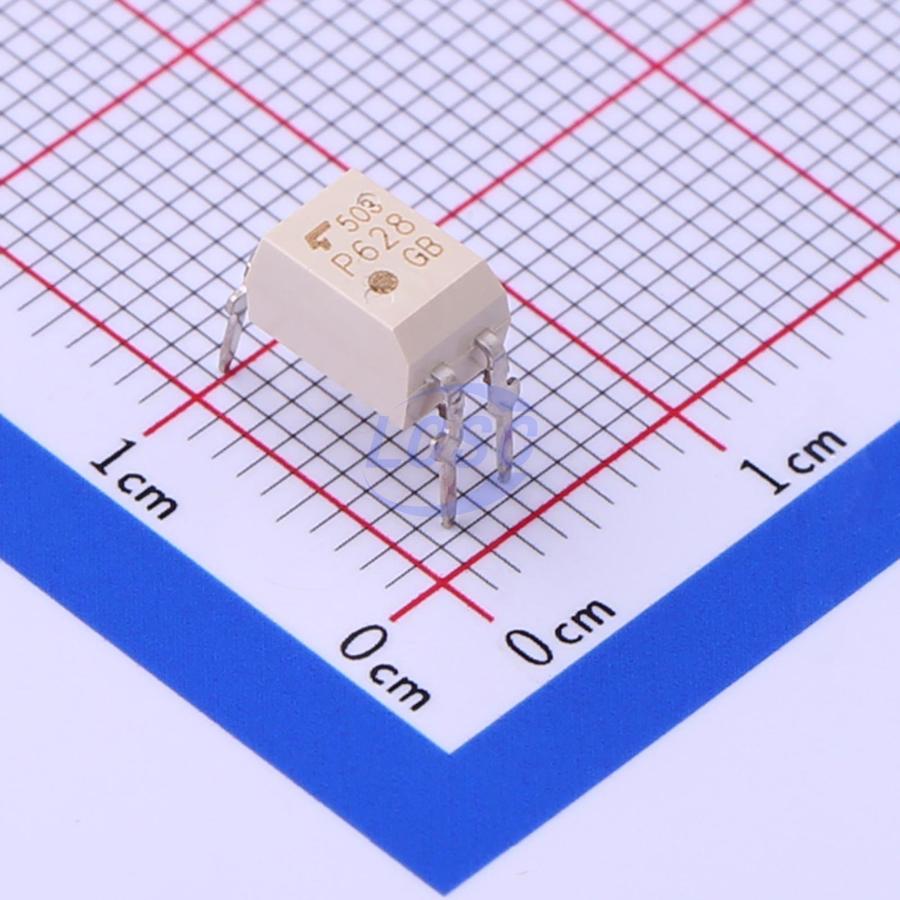

The Toshiba TLP628(GB,F) is a single-channel, transistor-output optocoupler (photocoupler) that pairs a gallium-arsenide infrared emitting diode with a high-voltage silicon phototransistor. The “GB” designation identifies the device’s current-transfer-ratio (CTR) rank, while the trailing “F” indicates the lead-free/RoHS-compliant packaging option. With a 350 V (min.) collector-emitter breakdown voltage and 5000 Vrms isolation, the TLP628 is widely used for signal isolation between high- and low-voltage circuits in industrial and telecom equipment.

Key Features

• Single-channel transistor (phototransistor) output optocoupler
• GaAs infrared LED input optically coupled to a high-voltage phototransistor
• Collector-emitter breakdown voltage: 350 V (min.)
• Current transfer ratio (CTR): rank GB, 50% to 600% (at I_F = 5 mA, V_CE = 5 V)
• Isolation voltage: 5000 Vrms (min.)
• Forward current (max.): 60 mA
• Collector current (max.): 50 mA
• Collector power dissipation (max.): 150 mW
• Junction temperature (max.): 125 °C
• 4-pin DIP package (anode, cathode, emitter, collector); lead-free “F” option
• Safety approvals: UL recognized (UL1577, file No. E67349)

Applications

• Programmable logic controllers (PLCs) and factory automation I/O
• AC/DC input signal isolation and level translation
• Telecommunication line cards and interface modules
• Power supply feedback and switching-regulator isolation
• Industrial sensor and control-signal coupling
