TLP2748(D4-TP,E(T) – Logic Output Optocoupler – Toshiba

Available — quote-only

Please contact us or request a quote for current pricing and availability.

or call 800-993-9047
Part Number
TLP2748(D4-TP,E(T)
Manufacturer
Toshiba Electronic Devices & Storage Corporation
Condition
New — trusted and guaranteed
Documentation
Full lot documentation with every shipment

Specifications

Manufacturer
Toshiba Electronic Devices & Storage Corporation
Component Type
Logic Output Optocoupler (Photo-IC output)
Number of Channels
1
Data Rate
10 Mbps
Output Type
Totem-pole (inverting) logic output
Isolation Voltage (BVS)
5000 Vrms (60 s)
Common-Mode Transient Immunity
+/-30 kV/us
Supply Voltage Range
4.5 V to 30 V
Max Propagation Delay (tpLH / tpHL)
120 ns
Operating Temperature
-40 C to +110 C
Package
SO6L (6-pin SMD, 2.3 mm max height)
Safety / Compliance
UL 1577, cUL, VDE (EN 60747-5-5), RoHS compatible, reinforced insulation
Part Status
Active
Availability
Available

About this part

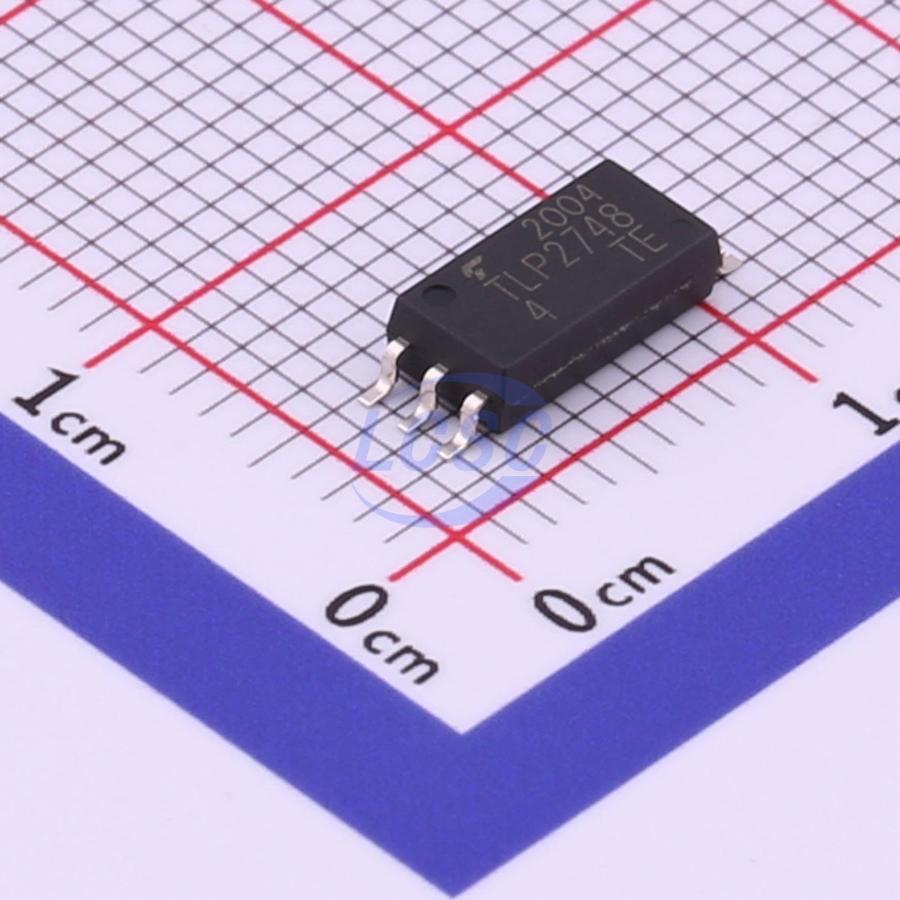

The Toshiba TLP2748 (full ordering code TLP2748(D4-TP,E(T)) is a high-speed logic-output optocoupler that combines a GaAlAs infrared LED with an integrated photo-IC detector. Designed for robust digital isolation, it delivers a 10 Mbps data rate, a totem-pole (inverting) logic output, and exceptional common-mode transient immunity of plus/minus 30 kV/us, making it well suited to noisy industrial environments. The device is housed in a low-profile SO6L surface-mount package measuring just 2.3 mm in height.

Key Features

Applications

Why Source TLP2748 from Pacific Component Xchange

The Toshiba TLP2748 can be difficult to obtain through authorized channels, with limited franchised-distributor stock available. Pacific Component Xchange specializes in sourcing hard-to-find and allocated optocouplers and isolation ICs like the TLP2748. We support engineers and buyers facing end-of-life, long-lead, and allocation challenges with authenticity-verified components and global shipping.

Every order is backed by our quality and counterfeit-avoidance processes. If you need the TLP2748 in tape-and-reel quantities or have a hard-to-find requirement, request a quote (RFQ) from Pacific Component Xchange today and our sourcing team will respond with availability and lead time.

Frequently asked questions

What is the correct orderable part number for TLP2748(D4-TP,E(T?

The garbled source string resolves to Toshiba's orderable code TLP2748(D4-TP,E(T), the tape-and-reel SO6L variant. The base part number is TLP2748.

What type of component is the TLP2748?

It is a high-speed logic-output optocoupler (photocoupler) from Toshiba, pairing a GaAlAs infrared LED with an integrated photo-IC detector that provides a totem-pole inverting logic output.

What is the isolation voltage of the TLP2748?

The TLP2748 provides a guaranteed isolation voltage (BVS) of 5000 Vrms for 60 seconds, meeting reinforced insulation requirements.

What data rate and propagation delay does the TLP2748 support?

It supports a data rate of 10 Mbps with a maximum propagation delay of 120 ns for both low-to-high (tpLH) and high-to-low (tpHL) transitions.

What package does the TLP2748 come in?

It is supplied in a low-profile SO6L 6-pin surface-mount package with a maximum height of 2.3 mm and 8 mm creepage/clearance.

Is the TLP2748 available if it is not in stock at authorized distributors?

Yes. Pacific Component Xchange specializes in sourcing hard-to-find optocouplers like the TLP2748. Submit an RFQ and our team will provide current availability and lead time.
