Toshiba Electronic Devices & Storage Corporation Electronic Parts
Available — quote-only
Please contact us or request a quote for current pricing and availability.
The Toshiba TLP2704 is a high-speed, single-channel photocoupler (optocoupler) that pairs an infrared LED with an integrated high-gain, high-speed photodetector featuring an open-collector Photo-IC output. Housed in the surface-mount SO6L package, it delivers reinforced insulation with a guaranteed isolation voltage of 5000 Vrms, making it well suited for signal isolation in industrial and motor-control systems.
An internal Faraday shield gives the TLP2704 a guaranteed common-mode transient immunity of ±20 kV/µs, ensuring reliable operation in electrically noisy inverter and power-conversion environments. The device supports data rates up to 1 Mbps, and its wide -40°C to +125°C operating range supports demanding industrial deployments.
The TLP2704 can be difficult to obtain through authorized channels, with limited or no stock at mainline distributors. Pacific Component Xchange is an independent distributor specializing in hard-to-find and allocation-constrained power-management ICs and optocouplers. We source genuine components, perform authenticity verification, and ship globally to keep your production lines and prototypes moving.
Because this is a Request-For-Quote item, contact Pacific Component Xchange today to request a quote for the TLP2704 with your required quantity and target date, and our sourcing team will respond with current availability and pricing.
The base orderable part is TLP2704 from Toshiba. The full ordering code is commonly listed as TLP2704(TP,E(T, where the suffix denotes tape-and-reel embossed carrier packaging. Any trailing fragment in the source listing was a truncated packaging code.

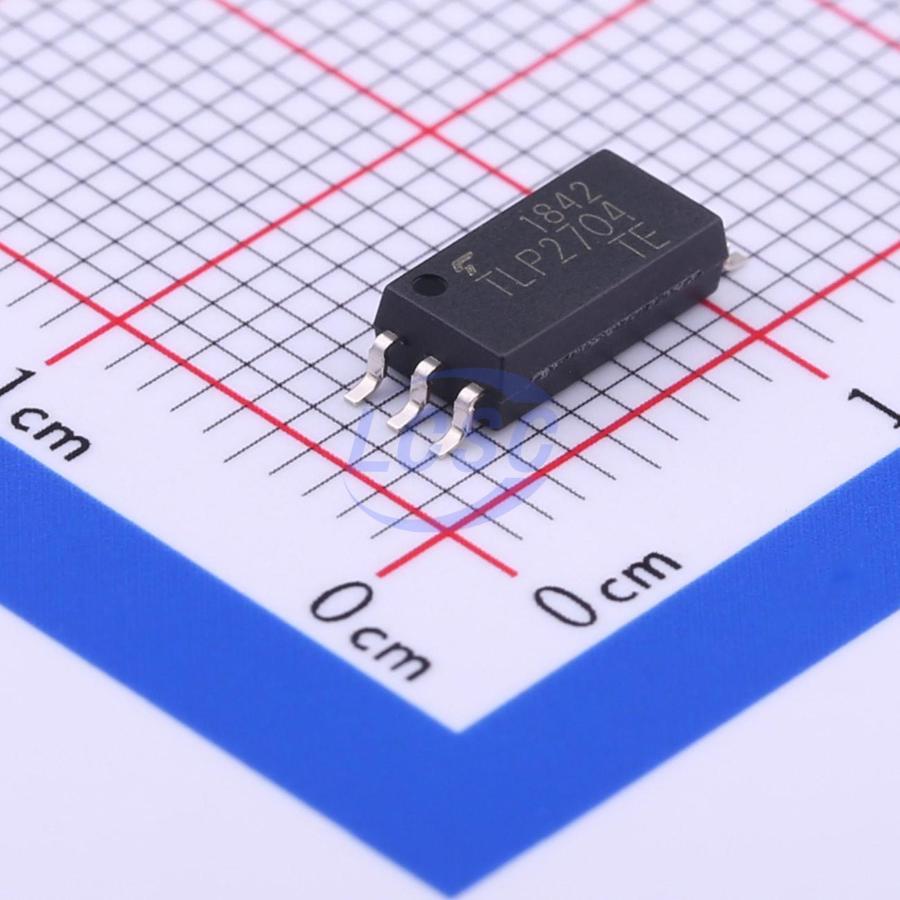

The TLP2704 is supplied in Toshiba's SO6L package, a 6-pin surface-mount package that meets the reinforced-insulation requirements of international safety standards.
The TLP2704 provides a guaranteed isolation voltage (Viso) of 5000 Vrms for 60 seconds between input and output.
It has an open-collector Photo-IC output and is a single-channel (1-circuit) high-speed photocoupler supporting data rates up to 1 Mbps.
It is designed for intelligent power module (IPM) interfaces, signal isolation, factory automation equipment, and industrial inverters and motor control.
Yes. The TLP2704 is a Request-For-Quote item at Pacific Component Xchange. As an independent distributor specializing in hard-to-find optocouplers, we can source genuine units and provide a quote with current availability and lead time.
