TLP2348(TPL,E(T – Logic Output Optocoupler – Toshiba

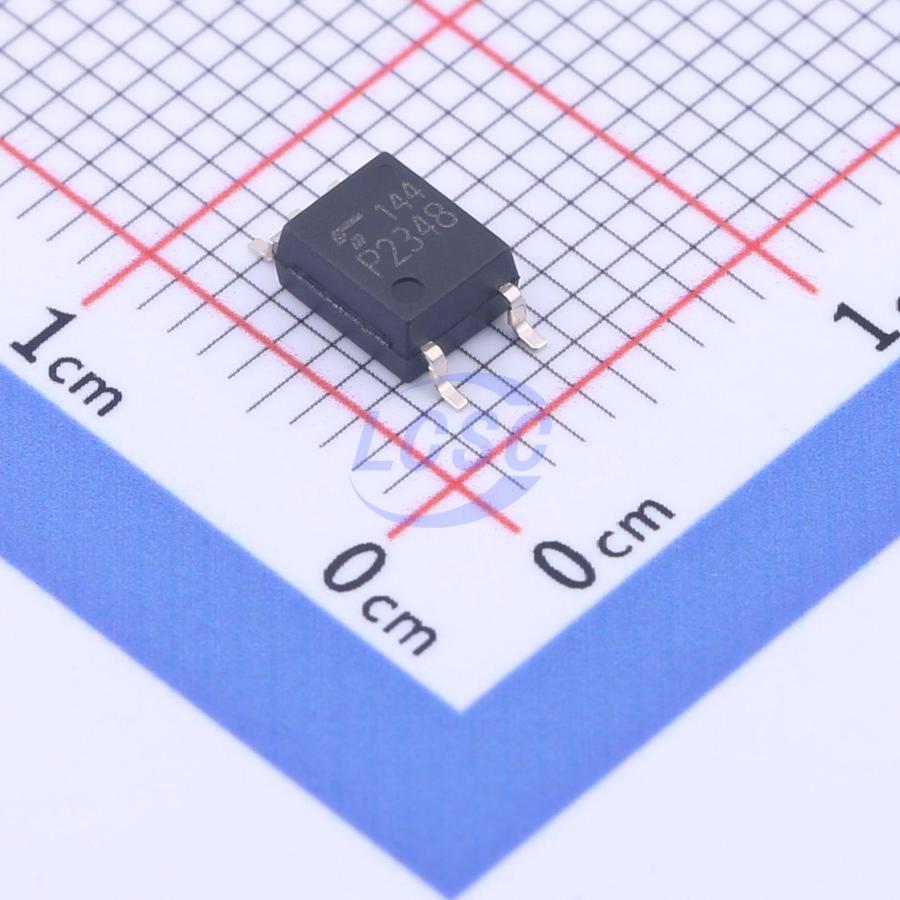

The Toshiba TLP2348 is a single-channel, high-speed logic-output optocoupler with an inverting totem-pole output, 3750 Vrms isolation, and a 10 Mbps data rate in a compact 5-pin SO6 package.

The Toshiba TLP2348 is a single-channel, high-speed logic-output optocoupler (photocoupler) designed to transmit digital signals across an isolation barrier in noisy industrial environments. It pairs a high-output GaAlAs infrared LED with a high-gain, high-speed photo-IC detector that drives an inverting, totem-pole logic output, delivering clean isolated logic transitions at data rates up to 10 Mbps. With 3750 Vrms isolation and an internal Faraday shield for high common-mode transient immunity, the TLP2348 is well suited to communication interfaces, programmable logic controllers (PLCs), and intelligent power module (IPM) signal isolation.

Key Features

• Single-channel (1 circuit) logic-output photocoupler
• Inverter logic type with totem-pole output stage (current sourcing and sinking)
• Isolation voltage (BVS): 3750 Vrms (AC, 60 s, min)
• Data rate up to 10 Mbps
• Supply voltage (VCC): 4.5 V to 30 V
• Propagation delay: typ. 61 ns (tpHL) / 65 ns (tpLH), max 120 ns
• Pulse width distortion: 40 ns (max)
• Common-mode transient immunity: ±30 kV/µs (min)
• Threshold input current (IFHL): 1.6 mA (max)
• Supply current: 3 mA (max)
• Operating temperature: -40°C to +110°C
• Compact 5-pin SO6 package (approx. 3.7 × 7.0 × 2.1 mm)
• Safety standards: UL1577, cUL/CSA, VDE (Option V4), CQC approved

Applications

• Intelligent Power Module (IPM) signal isolation
• Industrial communication interfaces and isolated data links
• Programmable logic controllers (PLCs)
• High-speed digital interfacing for instrumentation and control
• Inverters and motor-drive control systems
• Isolated digital signal transmission in noisy power environments

Why Source TLP2348(TPL,E(T from Pacific Component Xchange

Authorized-distributor inventory for the Toshiba TLP2348 is frequently constrained, and the standard tape-and-reel ordering format carries a high minimum order quantity. Pacific Component Xchange specializes in hard-to-find and allocation-constrained power-management ICs and optocouplers, helping engineers and buyers secure the exact part they need without overcommitting on volume.

As an independent distributor, we source obsolete, end-of-life, and short-supply components through a vetted global network, with authenticity verification and inspection on every order. Whether you need a handful of units for a production fix or a larger isolated buy, we ship worldwide and respond quickly.

Request a quote (RFQ) for the TLP2348(TPL,E(T today and our sourcing team will confirm availability, lead time, and pricing for your required quantity.
