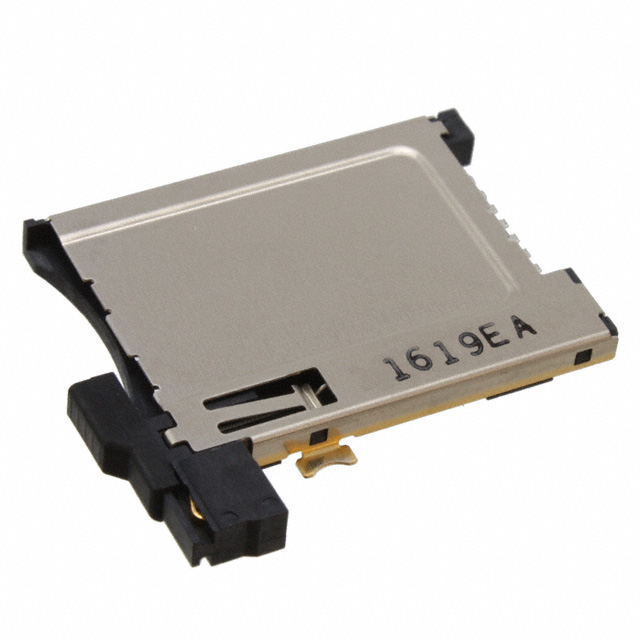

055036006223862+ – 8-Position SIM Card Socket – Kyocera AVX

This Kyocera AVX 055036006223862+ SIM card socket provides reliable, space-saving connectivity for embedded systems. Designed for surface-mount assembly, it features gold contacts and an integrated ejector mechanism to ensure secure SIM card retention and easy maintenance in compact devices. PCX ensures genuine Kyocera AVX components with fast shipping and dedicated technical support.

Key Features

• Card Type: SIM Card
• Positions: 8 (6+2 configuration)
• Mounting: Surface Mount, Right Angle
• Contact Finish: Gold (20µin thickness)
• Insertion/Removal: Push In, Push Out
• Special Features: Integrated latches, switch, and right-side ejector
• Height: 0.110″ (2.80mm) above board
• Compliance: RoHS Compliant

Technical Specifications

Part of Kyocera’s 5036 series, this obsolete-status connector maintains critical legacy support with its right-angle PCB orientation and “Normal, Standard – Top” mounting. The 6+2 contact layout optimizes signal integrity for SIM card applications, while the 0.51µm gold plating ensures corrosion-resistant, low-resistance connections. Operating temperature ranges align with industrial standards (refer to datasheet for details).

Common Applications

• Mobile phones and smartphones
• IoT devices and M2M communication modules
• Tablets and portable medical equipment
• Industrial control systems
• Automotive telematics units

About Kyocera AVX

Kyocera AVX is a global leader in advanced electronic components, renowned for engineering excellence in connectors, capacitors, and sensors. With over 50 years of innovation, the company holds ISO 9001 and IATF 16949 certifications, guaranteeing rigorous quality control and automotive-grade reliability across its product lines.

Their expertise in miniaturized interconnects makes Kyocera AVX a preferred supplier for mission-critical applications in telecommunications, aerospace, and medical technology. The brand’s commitment to sustainable manufacturing and long-term component support ensures design continuity for legacy systems.

About SIM Card Connectors

SIM card connectors are essential surface-mount interfaces that enable secure subscriber identification in mobile and embedded devices. Their compact, right-angle designs save PCB space while providing mechanical stability through integrated latching and ejection systems. Gold-plated contacts prevent oxidation, maintaining signal integrity across thousands of insertion cycles.

These connectors support global cellular standards in applications ranging from consumer electronics to industrial IoT. Proper selection ensures compatibility with SIM form factors, withstands mechanical stress from card swaps, and meets EMI/RFI shielding requirements for sensitive wireless environments.

Packaging Options

Available in Tape & Reel (TR) and Cut Tape (CT) formats for automated SMT assembly or prototyping needs.

FAQs

Question: Is this SIM socket compatible with nano-SIM cards?
Answer: No, this connector is designed for standard SIM form factors. Verify mechanical dimensions in the datasheet.

Question: Why is this part marked obsolete?
Answer: Kyocera AVX has discontinued production, but PCX maintains stock for legacy system repairs and replacements.

Question: What’s the purpose of the 6+2 contact configuration?
Answer: The 6 primary contacts handle SIM communication, while the 2 auxiliary pins detect card insertion/removal.

Question: Can this connector withstand high-vibration environments?
Answer: Yes, the integrated latches and ejector mechanism provide secure card retention in industrial settings.

Question: Is hot-swapping supported?
Answer: The push-in/push-out mechanism allows safe card replacement without powering down devices.

Question: Where can I find mounting specifications?
Answer: Download the complete datasheet here for PCB footprint and thermal guidelines.

Disclaimer: Product images are representational. Refer to datasheets for exact dimensions.
