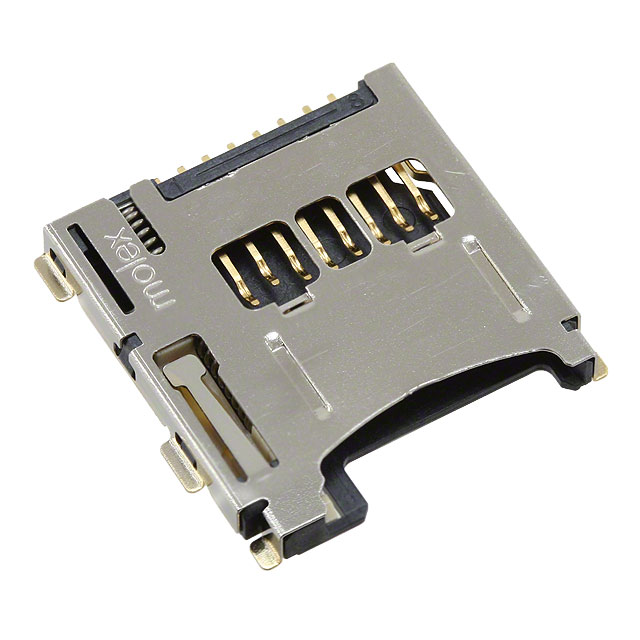

Molex 0492250821 – microSD™ Card Socket Connector – 11-Position, Surface Mount
The Molex 0492250821 is a high-reliability microSD™ card socket connector engineered for secure memory card integration in space-constrained electronics. Featuring a surface-mount, right-angle design with gold contacts, it ensures robust data transfer and easy card handling. PCX delivers this critical interconnect solution with guaranteed stock and expedited shipping.
Key Features:
– **Card Compatibility**: Secure Digital – microSD™
– **Mounting Style**: Surface Mount, Right Angle (Reverse Bottom)
– **Contact Finish**: Gold-plated for corrosion resistance
– **Positions**: 11 (8 data + 3 switch)
– **Insertion/Removal**: Push-Push ejector mechanism
– **Height Profile**: Ultra-low 0.077″ (1.95mm) above board
– **Special Feature**: Integrated detection switch
Technical Specifications:
– **Series**: Molex 49225
– **Connector Type**: Socket with integrated ejector
– **Mounting Orientation**: Reverse – Bottom
– **Base Part Number**: 049225
– **Status**: Obsolete (legacy support available)
– **Packaging**: Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Common Applications:
– Smartphones and mobile devices
– Portable medical monitoring equipment
– Industrial IoT sensors and controllers
– Digital
Additional Information
| Category | Connectors, InterconnectsMemory ConnectorsPC Card Sockets |
|---|---|
| Brand | Molex |
| Manufacturer | Molex |
| Series | 49225 |
| Packaging | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Obsolete |
| Card Type | Secure Digital – microSD™ |
| Number of Positions | 11 (8 + 3) |
| Connector Type | Connector and Ejector |
| Insertion, Removal Method | Push In, Push Out |
| Mounting Type | Surface Mount, Right Angle |
| Features | Switch |
| Height Above Board | 0.077" (1.95mm) |
| Mounting Feature | Reverse – Bottom |
| Contact Finish | Gold |
| Base Product Number | 049225 |
| Full Description | 0492250821 |
