NT5CB256M16DP-EK – DDR3 SDRAM – Nanya

The Nanya NT5CB256M16DP-EK is a 4Gb DDR3 SDRAM organized as 256M x16, rated DDR3-1866 (13-13-13) at 1.5 V in a 96-ball FBGA package. Available for RFQ from Pacific Component Xchange.

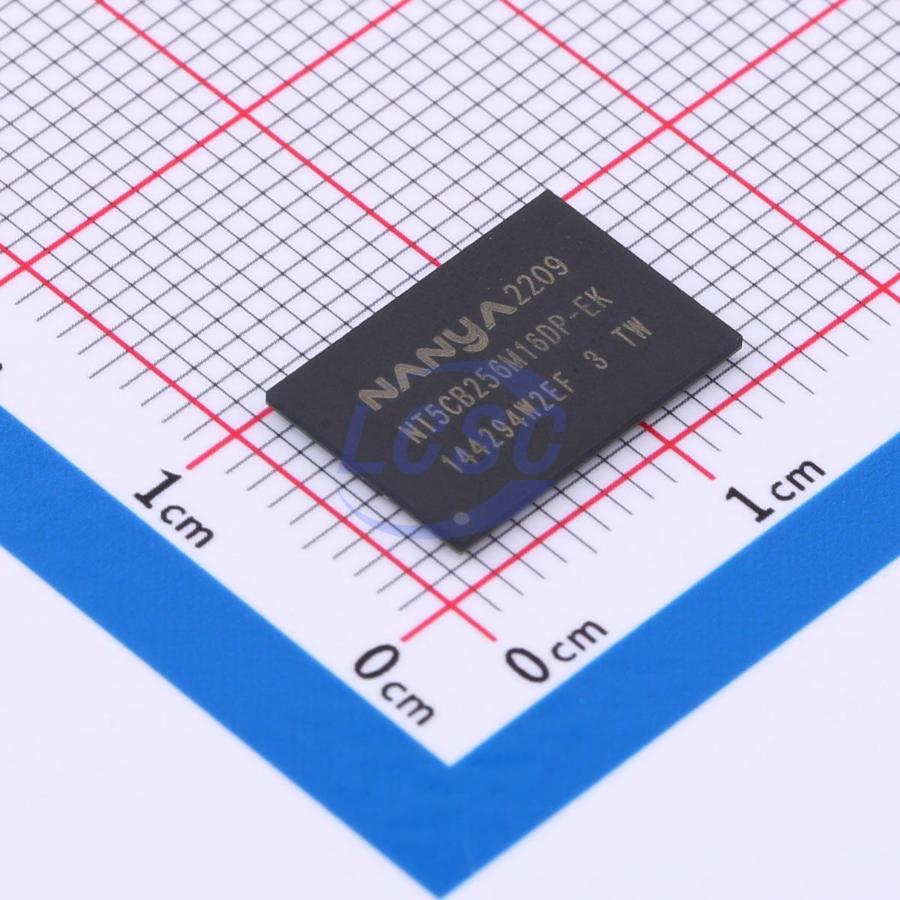

The Nanya NT5CB256M16DP-EK is a 4-gigabit (4Gb) DDR3 synchronous DRAM (SDRAM) device organized as 256M x16. It is a high-speed, JEDEC-compliant CMOS memory rated at a DDR3-1866 data rate (1866 Mb/s/pin, 933 MHz clock) with 13-13-13 timing (CL-tRCD-tRP). The device is supplied in a 96-ball FBGA package and operates from a 1.5 V power supply (1.425 V to 1.575 V), making it a versatile mainstream-density component for a wide range of embedded and computing designs.

As part of Nanya’s commercial, industrial, and automotive DDR3 family, the NT5CB256M16DP-EK integrates the full DDR3 feature set including eight internal banks, on-die termination (ODT), ZQ calibration, write leveling, and auto/self-refresh for reliable operation in demanding applications. The commercial-grade device is specified for operation over a 0 degrees C to +95 degrees C case temperature range.

Key Features

• 4Gb DDR3 SDRAM density
• Organization: 256M x16 (x16 I/O, 8 internal banks)
• Data rate: DDR3-1866 (1866 Mb/s/pin), 933 MHz clock
• Speed grade timing: 13-13-13 (CL-tRCD-tRP)
• Supply voltage: 1.5 V nominal (1.425 V to 1.575 V), VDD/VDDQ
• Package: 96-ball FBGA
• Operating temperature: 0 degrees C to +95 degrees C (commercial, case temperature)
• JEDEC DDR3-compliant; eight-bank architecture
• On-die termination (ODT), ZQ calibration, write leveling, auto/self-refresh

Applications

• Embedded computing and single-board computers
• Networking and telecom equipment
• Industrial control and automation systems
• Set-top boxes, digital signage, and consumer electronics
• Memory module assembly and system-level DRAM upgrades

Why Source NT5CB256M16DP-EK from Pacific Component Xchange

Mainstream DDR3 densities like the NT5CB256M16DP-EK can be difficult to obtain through authorized channels as production shifts toward newer memory technologies. As an independent distributor specializing in hard-to-find and end-of-life memory, Pacific Component Xchange maintains active sourcing across a global network to keep your builds and repairs on schedule.

We back every order with rigorous authenticity and quality-verification processes to protect against counterfeit components, and we ship worldwide to support both prototype and production volumes.

Request a quote (RFQ) today for the NT5CB256M16DP-EK and our team will respond quickly with pricing, lead time, and current availability tailored to your requirements.
