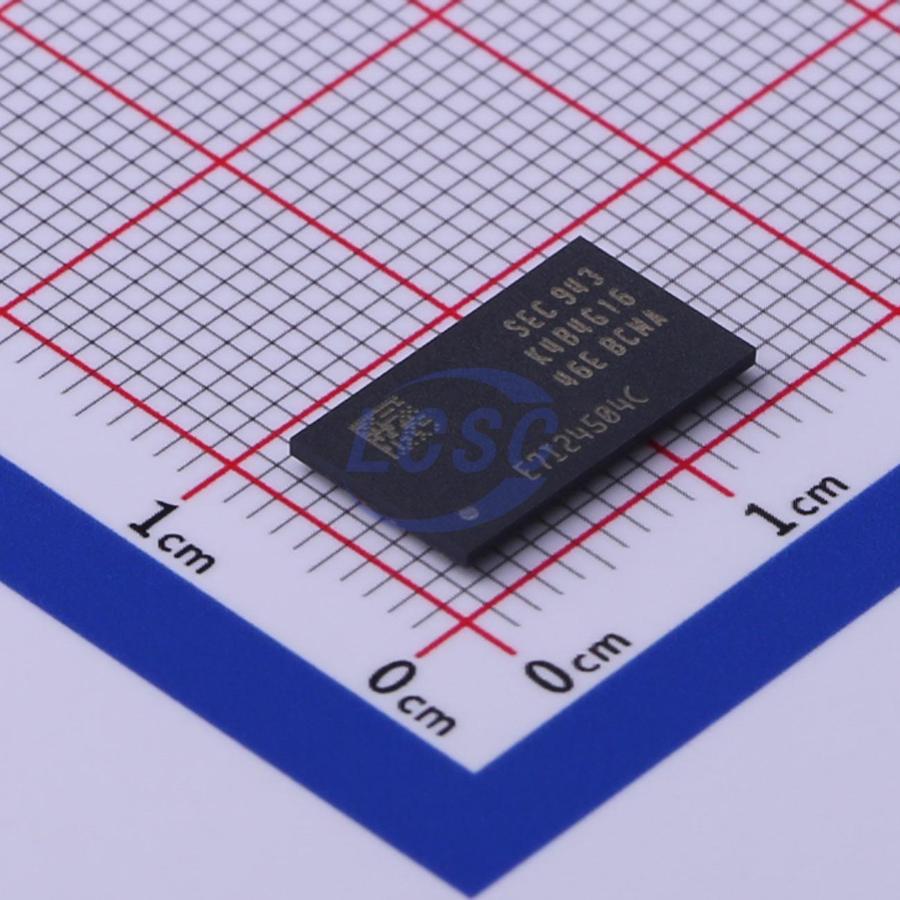

K4B4G1646E-BCMA – DDR3 SDRAM – Samsung

The Samsung K4B4G1646E-BCMA is a 4Gb DDR3 SDRAM organized as 256M x 16, rated for DDR3-1866 (1866 Mbps) operation at 1.5V in a 96-ball FBGA package. Available now for RFQ at Pacific Component Xchange.

The Samsung K4B4G1646E-BCMA is a 4-gigabit DDR3 SDRAM device organized as 256M x 16, housed in a 96-ball fine-pitch ball grid array (FBGA) package. The “-BCMA” speed-grade suffix designates a DDR3-1866 rating, delivering a data transfer rate of 1866 Mbps per pin at a 933 MHz clock and CAS latency of 13, operating from a nominal 1.5V supply. It is a popular x16 DRAM die used in embedded systems, networking equipment, and graphics or display subsystems where a single high-density device simplifies board layout.

This part is part of Samsung’s K4B4G1646E family, in which the -BCK0 (DDR3-1600), -BCMA (DDR3-1866), and -BCNB (DDR3-2133) variants share a common package and pinout, allowing higher-speed grades to drop into the same PCB footprint. As DDR3 transitions out of mainstream production, the K4B4G1646E-BCMA has become increasingly difficult to source through authorized channels, making it a frequent target for end-of-life buys and last-time procurement.

Key Features

• Density: 4Gb (4 gigabit) DDR3 SDRAM
• Organization: 256M x 16 (x16 data width)
• Speed grade: DDR3-1866, up to 1866 Mbps/pin (933 MHz clock)
• CAS latency: CL13 at DDR3-1866
• Supply voltage: 1.5V (VDD/VDDQ)
• Package: 96-ball FBGA
• Operating temperature: 0 C to +95 C (commercial)
• Pin-compatible within the K4B4G1646E -BCK0 / -BCMA / -BCNB speed-grade series

Applications

• Networking, routing, and telecom line-card memory
• Embedded and industrial single-board computers
• Set-top boxes, displays, and digital signage
• Graphics and video buffer memory
• Test, measurement, and instrumentation equipment
• Legacy and long-lifecycle product maintenance / repair

Why Source K4B4G1646E-BCMA from Pacific Component Xchange

Pacific Component Xchange is an independent distributor specializing in hard-to-find, obsolete, and end-of-life memory. The Samsung K4B4G1646E-BCMA is a scarce DDR3 device with little to no authorized-distributor availability, and we currently hold inventory ready to ship. Our team supports global buyers managing last-time buys, production shortages, and EOL transitions with rigorous incoming inspection and authenticity verification to guard against counterfeit and remarked parts.

Because this is a Request-For-Quote product, pricing is tailored to quantity and delivery requirements. Submit an RFQ today for current lead time and the best available pricing, and let our sourcing specialists secure the K4B4G1646E-BCMA volumes you need with worldwide shipping.
