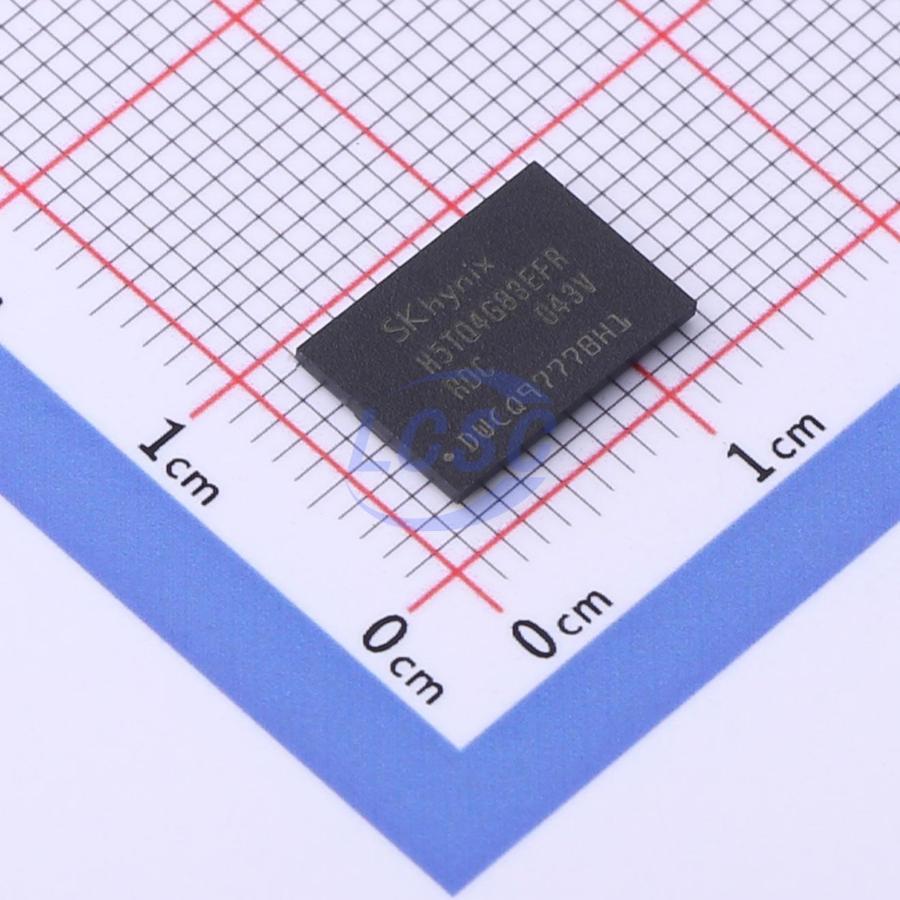

H5TQ4G83EFR-RDC – DDR3 SDRAM – SK Hynix

The H5TQ4G83EFR-RDC is an SK Hynix 4Gb DDR3 SDRAM device organized as 512M x 8 in a 78-ball FBGA package, operating at 1.5V with a DDR3-1866 speed grade. This part is hard-to-find and available for RFQ at Pacific Component Xchange.

The H5TQ4G83EFR-RDC from SK Hynix is a 4-gigabit (4Gb) DDR3 Synchronous DRAM (SDRAM) component designed for high-bandwidth main-memory applications. It is organized as 512M x 8 (x8 data width) and packaged in a space-efficient 78-ball Fine-pitch Ball Grid Array (FBGA-78). The device operates from a nominal 1.5V supply (VDD/VDDQ, 1.5V ± 0.075V) and belongs to SK Hynix’s 4Gb DDR3 SDRAM family. The “-RDC” suffix denotes the DDR3-1866 speed grade at commercial temperature.

DDR3 SDRAM transfers data on both the rising and falling edges of the clock and uses an 8-bit prefetch architecture to deliver high effective bandwidth. The H5TQ4G83EFR-RDC supports the standard DDR3 feature set, including programmable CAS latency, programmable burst length (BL8 / BC4), dynamic on-die termination (ODT), write leveling, and ZQ calibration.

Key Features

• Manufacturer: SK Hynix
• Memory type: DDR3 SDRAM
• Density: 4Gb (4,294,967,296 bits)
• Organization: 512M x 8 (x8)
• Package: FBGA-78 (0.8mm ball pitch)
• Supply voltage: 1.5V ± 0.075V (VDD / VDDQ)
• Speed grade: DDR3-1866 (1866 Mbps), CL13-13-13
• Architecture: 8-bit prefetch, double-data-rate, 8 banks
• Features: programmable CAS latency, programmable burst length, dynamic ODT, write leveling, ZQ calibration
• Compliance: Lead-free / halogen-free (RoHS compliant)

Applications

• Embedded computing and single-board computers
• Networking and telecom equipment (routers, switches, line cards)
• Industrial controllers and HMI systems
• Set-top boxes, digital media and consumer electronics
• Legacy system repair, retrofit and end-of-life production builds

Why Source H5TQ4G83EFR-RDC from Pacific Component Xchange

The H5TQ4G83EFR-RDC is an end-of-life DDR3 memory device with limited authorized-distributor availability, making it difficult to source through conventional channels. Pacific Component Xchange is an independent distributor specializing in hard-to-find and obsolete memory. Every device is subject to our inspection and authenticity verification processes to help protect your build against counterfeit risk. We support global shipping and can supply this part in volume for production and service requirements. Request a quote (RFQ) today for current pricing, lead time, and quantity availability on the H5TQ4G83EFR-RDC.
