AP9565BGH – P-Channel Power MOSFET – APEC

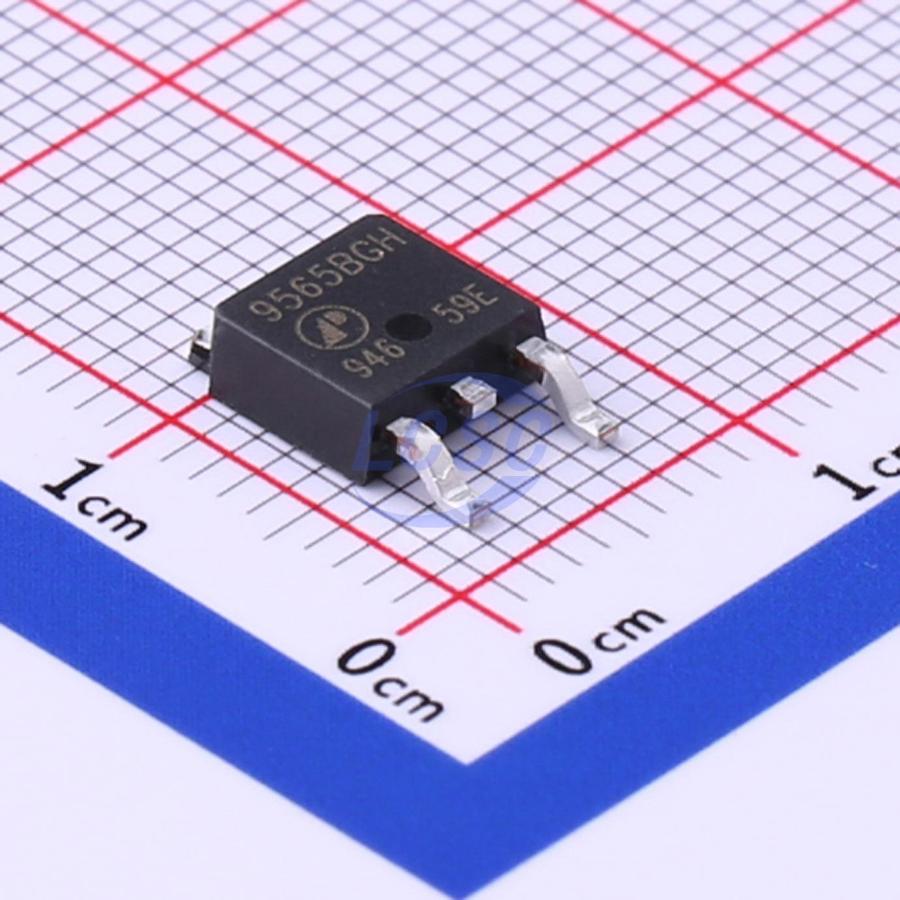

The AP9565BGH from APEC (Advanced Power Electronics Corp.) is a -40V, -17A P-channel enhancement-mode power MOSFET in a surface-mount TO-252 (DPAK) package, featuring low on-resistance and fast switching for DC/DC and load-switch applications.
The AP9565BGH is a P-channel enhancement-mode power MOSFET manufactured by APEC (Advanced Power Electronics Corp.). Built on a ruggedized device design, it combines fast switching, low on-resistance, and cost-effectiveness, making it well suited to commercial and industrial surface-mount power applications. The device is housed in the widely adopted TO-252 (DPAK) package; a through-hole TO-251 variant (AP9565BGJ) is offered for low-profile designs.
Key Features
- P-channel enhancement-mode power MOSFET
- Drain-Source Breakdown Voltage (BVDSS): -40 V
- Continuous Drain Current (ID): -17 A at TC = 25°C (-11 A at TC = 100°C)
- Pulsed Drain Current (IDM): -60 A
- Static Drain-Source On-Resistance RDS(ON): 52 mΩ max at VGS = -10 V; 90 mΩ max at VGS = -4.5 V
- Gate-Source Voltage (VGS): ±20 V
- Gate Threshold Voltage VGS(th): -1 V to -3 V
- Total Gate Charge (Qg): 7.8 nC typ.
- Total Power Dissipation (PD): 25 W at TC = 25°C
- Input Capacitance (Ciss): 530 pF typ.
- Operating Junction Temperature: -55°C to +150°C
- Lower gate charge with simple drive requirement and fast switching
- RoHS compliant and halogen-free (-HF)
Applications
- Low-voltage DC/DC converters
- High-side and low-side load switches
- Power management for portable and consumer electronics
- Battery and reverse-polarity protection circuits
- Motor drive and general-purpose power switching
Why Source AP9565BGH from Pacific Component Xchange
The AP9565BGH can be difficult to obtain through authorized channels with limited or no franchised-distributor stock. Pacific Component Xchange is an independent distributor specializing in hard-to-find and obsolete power-management ICs and discrete semiconductors. We help engineers and buyers secure scarce parts like the AP9565BGH with authenticity verification, careful inspection, and worldwide shipping.
No price is listed because this is a request-for-quote (RFQ) item. Submit an RFQ to Pacific Component Xchange for current availability, lead time, and pricing on the AP9565BGH and its variants (AP9565BGH-HF, AP9565BGJ).
Additional Information
| Manufacturer | Advanced Power Electronics Corp. (APEC) |
|---|---|
| Component Type | P-Channel Enhancement Mode Power MOSFET |
| Drain-Source Voltage (BVDSS) | -40 V |
| Continuous Drain Current (ID) | -17 A @ TC=25C (-11 A @ TC=100C) |
| Pulsed Drain Current (IDM) | -60 A |
| RDS(ON) | 52 mOhm max @ VGS=-10V; 90 mOhm max @ VGS=-4.5V |
| Gate-Source Voltage (VGS) | +/-20 V |
| Gate Threshold Voltage (VGS(th)) | -1 V to -3 V |
| Total Gate Charge (Qg) | 7.8 nC typ |
| Total Power Dissipation (PD) | 25 W @ TC=25C |
| Input Capacitance (Ciss) | 530 pF typ |
| Operating Junction Temperature | -55C to +150C |
| Package | TO-252 (DPAK) |
| Part Status | Active |
| Availability | Available |
